Roll Forming Machine

◆ What is a roll forming machine?

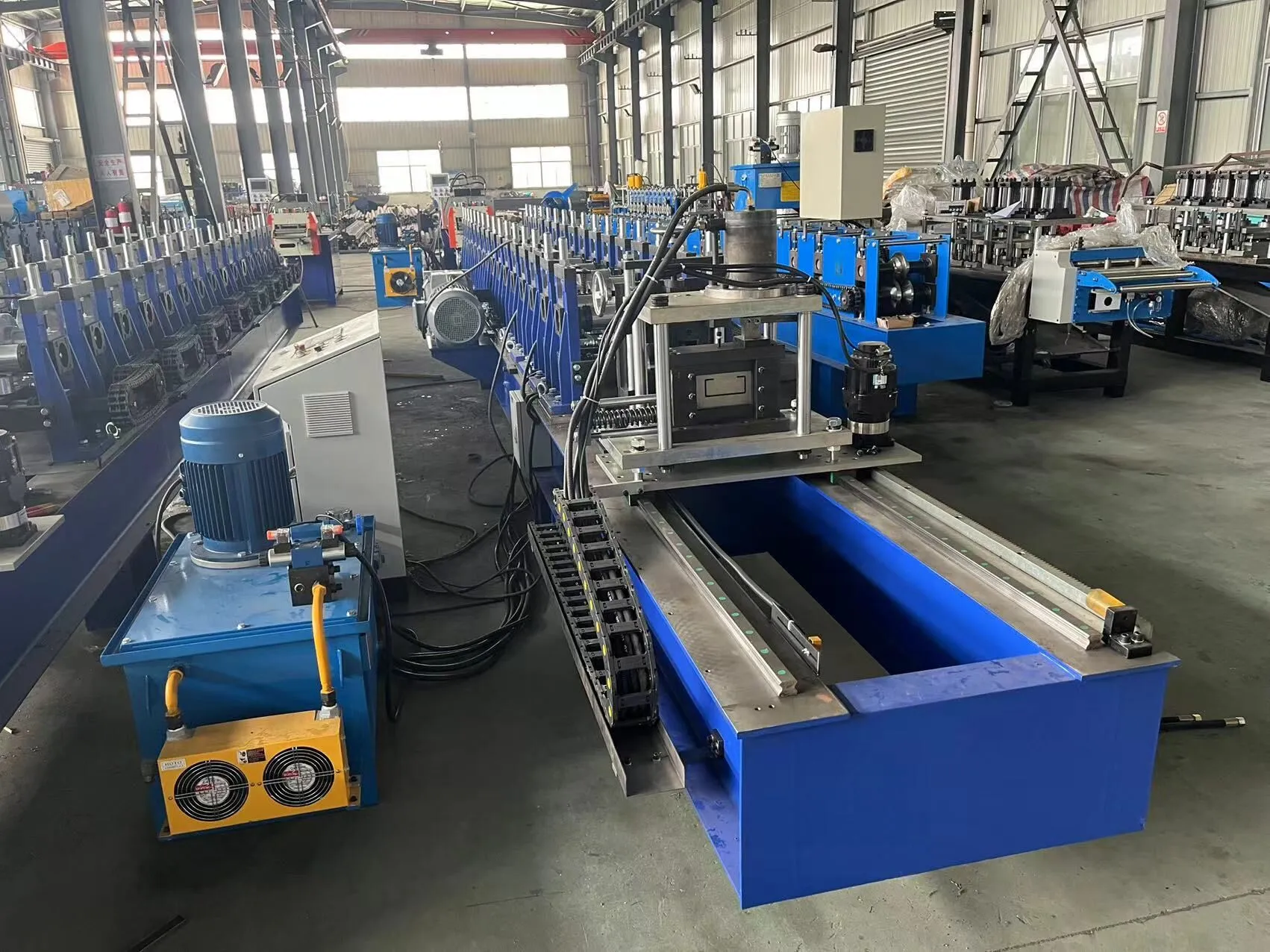

roll forming machine

A roll forming machine is a type of equipment used to shape metal sheets or strips into desired cross-sectional profiles, it is also called metal roll forming machine or steel roll forming machine. The metal sheet roll forming machine is consists of a series of rollers, which gradually shape the metal strip or sheet as it passes through them. The rollers are typically arranged in pairs and can be adjusted to produce different shapes and sizes of profiles. Roll forming machines are commonly used in industries such as construction, automotive, and manufacturing for producing products such as roof panels, wall panels, door frames, and more.

◆ Roll forming machine products

We have a rich range of processing equipment and have a professional R&D and production team. We can design and manufacture various tile press equipment according to the different requirements of users, mainly including: roofing roll forming machine, c purlin roll forming machine/z purlin roll forming machine series, floor decking roll forming machine, glazed tile roll forming machine, wholesale arch roof roll forming machine, highway steel guardrail roll forming machine etc. Please check as below and feel free to contact us for more information such as roll forming machine prices and roll forming machine video and so on.

roofing roll forming machine

Roof Roll Forming Machine

Product details:

Material thickness (mm) 0.3–0.8mm
Forming speed (m/min) 10-20m/min
Roll station 18 stations (depend on the profile)
Main power (kw) 5.5 kw
Hydraulic power (kw) 3 kw
Control system PLC panasonic
Drive by chain
Shear material cr12

A roof roll forming machine is specifically designed to produce various types of roofing panels such as corrugated metal roofing panels, standing seam roofing panels, and more. Roofing sheet roll forming machine is an efficient and cost-effective way to produce high-quality roofing panels for a variety of applications. These roll forming machines typically consist of a series of rollers that gradually shape the metal strip or sheet into the desired profile. Some roof sheet roll forming machines may be capable of producing multiple types of profiles by changing the rollers or other settings on the machine. In addition to the rollers, roof panel roll forming machine may include other roll forming machine parts such as a decoiler to feed the raw material into the machine, a cutter to cut the finished panels to length, and a control system to monitor and adjust the machine during operation. Contact us for more metal roof roll forming machine for sale.

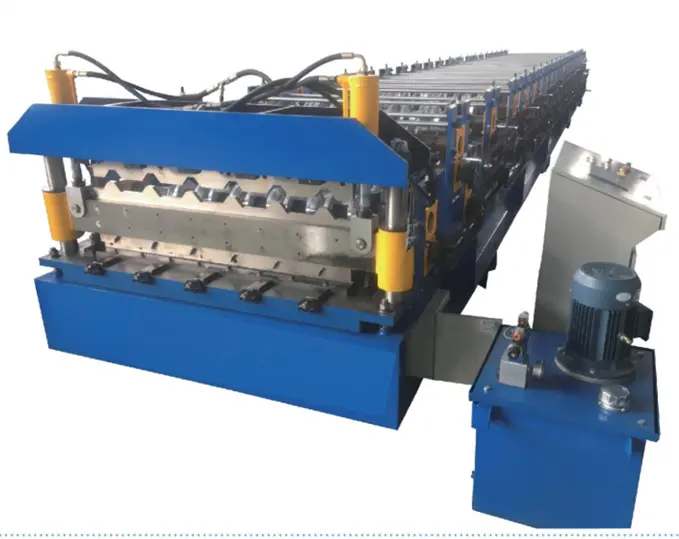

double layer roll forming machine factory

Double Layer Roll Forming Machine

Product details:

Material thickness (mm) 0.3–1mm
Forming speed (m/min) 10-15m/min
Roll station 18 stations (depend on the profile)
Main power (kw) 7.5 kw
Hydraulic power (kw) 4 kw
Control system PLC panasonic
Drive by chain
Shear material cr12

A double layer roll forming machine is designed to produce two different types of profiles on the same machine. The double deck roll forming machine is typically consist of two independent sets of rollers, each of which is responsible for forming a different profile. The two sets of rollers are stacked vertically, with one set of rollers located above the other. In the roll forming machine process, they share one computer control system and hydraulic shearing system. The double layer board roll forming machine can be used to produce a variety of products, such as roofing panels and wall panels. For example, the top set of rollers might be used to form a standing seam profile, while the bottom set of rollers forms a corrugated profile. A double layer roofing sheet roll forming machine can reduce the need for additional equipment and save space in the production facility. It can also help increase efficiency and reduce costs by minimizing the need for manual labor and setup time for switching between different machines. The hot sale double layer roof panel roll forming machine greatly improve efficiency and reduce costs, and is very suitable for small and medium-sized color steel enterprises.

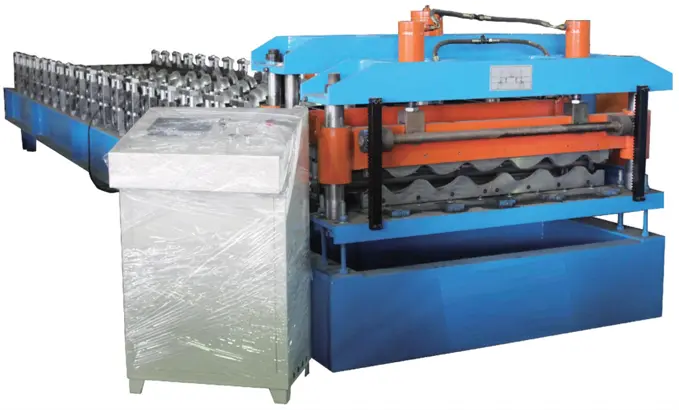

glazed roofing tile roll forming machine

Glazed Tile Roll Forming Machine

Product details:

Material thickness (mm) 0.3–0.8mm
Forming speed (m/min) 3-5m/min
Roll station 16 stations (depend on the profile)
Main power (kw) 5.5 kw
Hydraulic power (kw) 5 kw
Control system PLC panasonic
Drive by chain
Shear material cr12

A glazed tile roll forming machine is a specific type of roof tile roll forming machine used to produce glazed roof tiles. Glazed roof tiles are typically made of metal, such as steel or aluminum, and are coated with a protective layer of glazed material, which provides aesthetic appeal and enhances the durability of the tiles. Throughout the roll forming machine process, the roofing tile roll forming machine may use control systems to monitor and adjust parameters such as speed, roller positions, glazing application, and cutting lengths to ensure the proper production of high-quality glazed roof tiles. We are China roof tile roll forming machine factory, welcome to contact us for more information such as tile roll forming machine price.

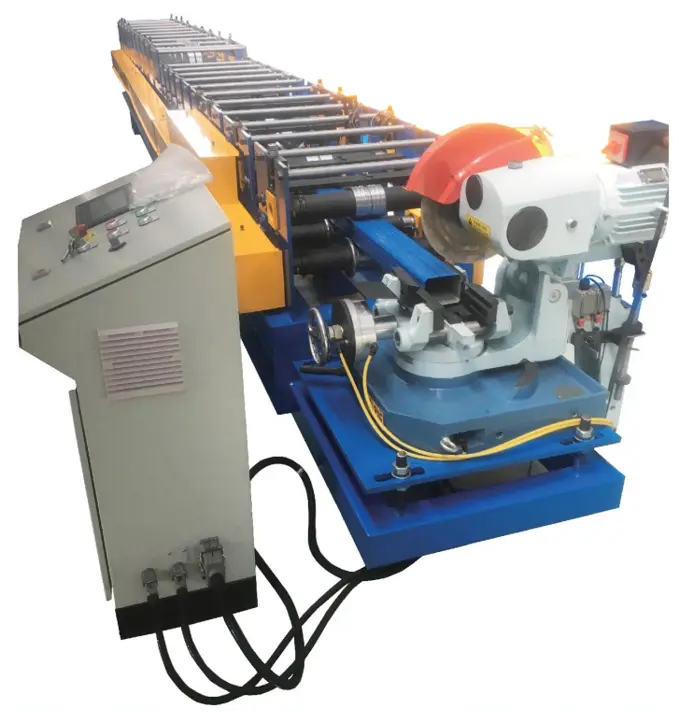

downspout pipe roll forming machine

Downspout Roll Forming Machine

Product details:

Material thickness (mm) 0.3–0.8mm
Forming speed (m/min) 8-10m/min
Roll station 18 stations (depend on the profile)
Main power (kw) 5.5 kw
Hydraulic power (kw) 4 kw
Control system PLC panasonic
Drive by chain
Shear material cr12

A downpipe roll forming machine is a specialized roll forming machine used to produce downpipes (also known as rainwater pipes or gutter pipes), it is also called downspout roll forming machine/gutter downpipe roll forming machine/down pipe roll forming machine. Downpipes are vertical pipes that collect and carry rainwater from the gutters or roof drainage system down to the ground or a drainage system. They are typically made of metal, such as galvanized steel or aluminum, and are formed into a specific shape to effectively channel the water away from the building. The products formed by the square/round downspout roll forming machine, have a longer service life compared to traditional PPC pipes. They are less prone to aging, which contributes to a more unified appearance and improved overall image of the entire project.

china gutter roll forming machine

Rain Gutter Roll Forming Machine

Product details:

Material thickness (mm) 0.3–0.8mm
Forming speed (m/min) 12-15m/min
Roll station 19 stations (depend on the profile)
Main power (kw) 5.5 kw)
Hydraulic power (kw) 4 kw
Control system PLC panasonic
Drive by chain
Shear material cr12

A gutter roll forming machine is a specialized equipment used to manufacture gutters. It is mainly designed to efficiently process and manufacture continuous lengths of gutter products from metal coils, and is widely used in the field of drainage. The water gutter roll forming machine typically consists of a series of rollers arranged in a specific configuration that gradually shapes the metal coils into the desired gutter shape. Gutter roll forming machines are widely used in the construction industry to produce seamless gutters with consistent quality and high production efficiency. They offer precise shaping, fast production speeds, and can customize OEM metal gutter roll forming machine to meet specific gutter profile requirements. We are professional gutter shaping roll forming machine factory, please feel free to contact us to get gutter roll forming machine quotes and for more details about gutter roll forming machine for sale.

automatic pouch packing machine manufacturers

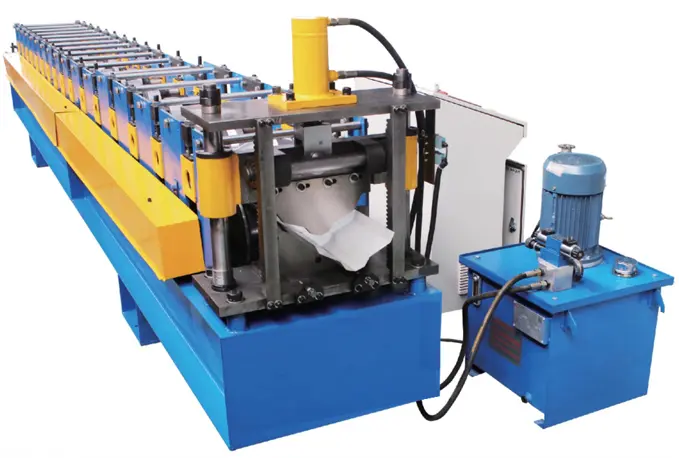

Ridge Cap Roll Forming Machine

Product details:

Material thickness (mm) 0.3–0.8mm
Forming speed (m/min) 10-15m/min
Roll station 12 stations (depend on the profile)
Main power (kw) 4 kw
Hydraulic power (kw) 5.5 kw
Control system PLC panasonic
Drive by chain
Shear material cr12

A ridge cap roll forming machine is a specialized equipment used to manufacture ridge caps. Ridge caps are roofing components that are installed at the peak of pitched roofs to protect against water intrusion and provide a finished look to the roof's edge. Ridge capping roll forming machines are widely used in the roofing industry to produce high-quality ridge caps with consistent quality and high production efficiency. The ridge cap roll forming machine offers precise shaping, fast production speeds, and can be customized to meet specific ridge cap profile requirements.

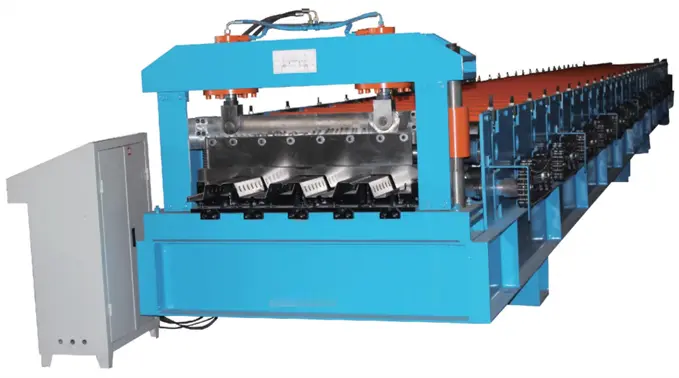

floor deck roll forming machine

Metal Deck Roll Forming Machine

Product details:

Material thickness (mm) 0.8–1.5mm
Forming speed (m/min) 10-15m/min
Roll station 26 stations (depend on the profile)
Main power (kw) 22 kw
Hydraulic power (kw) 5.5 kw
Control system PLC panasonic
Drive by chain
Shear material cr12

This metal deck roll forming machine is a floor decking roll forming machine which is used to manufacture floor decking, also known as steel deck roll forming machine. Floor decking, also known as steel deck or metal deck, is a structural component used in the construction industry to provide support for concrete floors and roofs. Deck roll forming machines are widely used in the construction industry due to their ability to efficiently produce high-quality metal decks with consistent dimensions. These decking floor roll forming machines offer precise shaping, fast production speeds, and can be adjusted to create various types of metal decking profiles based on project requirements.

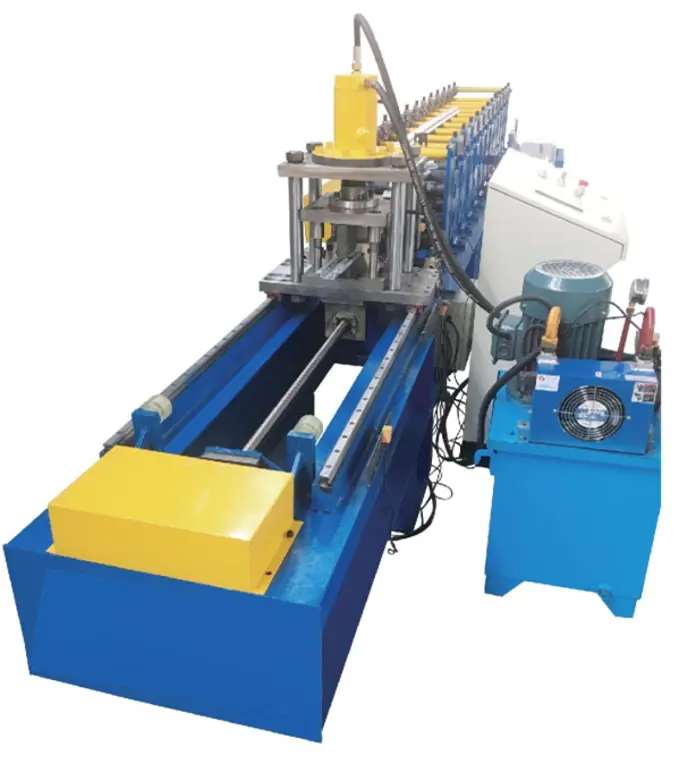

metal keel roll forming machine supplier

Keel Roll Forming Machine

Product details:

Material thickness (mm) 0.3–1mm
Forming speed (m/min) 10-20m/min
Roll station 14 stations (depend on the profile)
Main power (kw) 5.5 kw
Hydraulic power (kw) 3 kw
Control system PLC panasonic
Drive by chain
Shear material cr12

This keel roll forming machine is a steel keel roll forming machine, it is a specialized equipment used for manufacturing different types of metal keels. Metal keels are used in the construction industry to provide structural support for suspended ceilings, drywall partitions, and other interior or exterior construction projects. Keel roll forming machines are widely used in the construction industry due to their ability to efficiently produce high-quality metal keels with consistent dimensions. These customizable light keel roll forming machines offer precise shaping, fast production speeds, and can be adjusted to create various types of metal keel profiles based on project requirements. We are steel keel roll forming machine suppliers, welcome to contact us for more discussion on the wholesale keel roll forming machine.

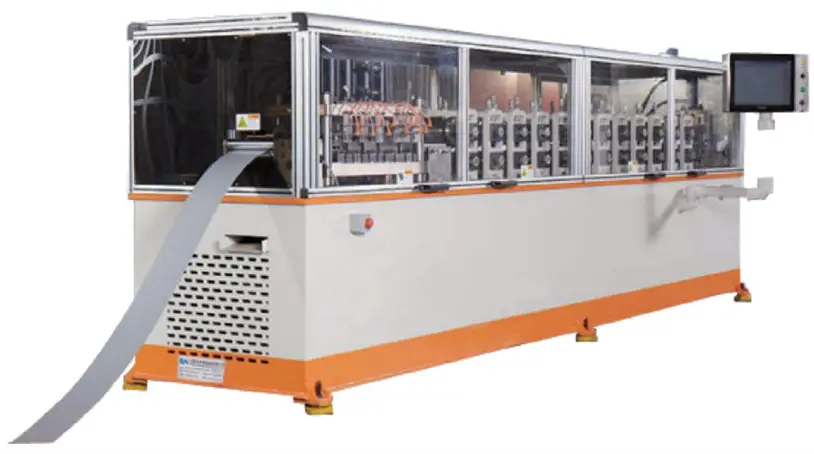

light steel metal keel roll forming machine

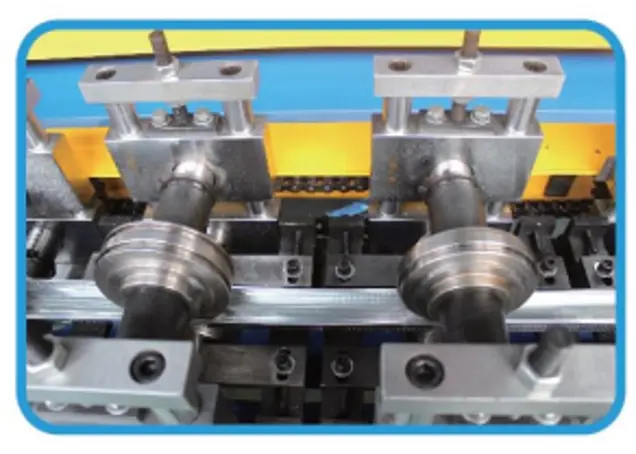

light keel roll forming machine factory

This keel roll forming machine is a light keel villa roll forming machine, this type roll forming machine is used to manufacture lightweight keels for villas. The lightweight villa keels are structural components used in the construction industry to support the framework and walls of houses. These keels are characterized by their lightweight nature, structural stability, and compliance with building standards, and they are widely used in the construction of lightweight villas. The light keel villa roll forming machine can efficiently produce the keels required for lightweight villas. It has precise shaping capabilities, fast production speed, and can be adjusted based on project requirements to create different types of keel profiles. We are keel roll forming machine manufacturer, feel free to contact us.

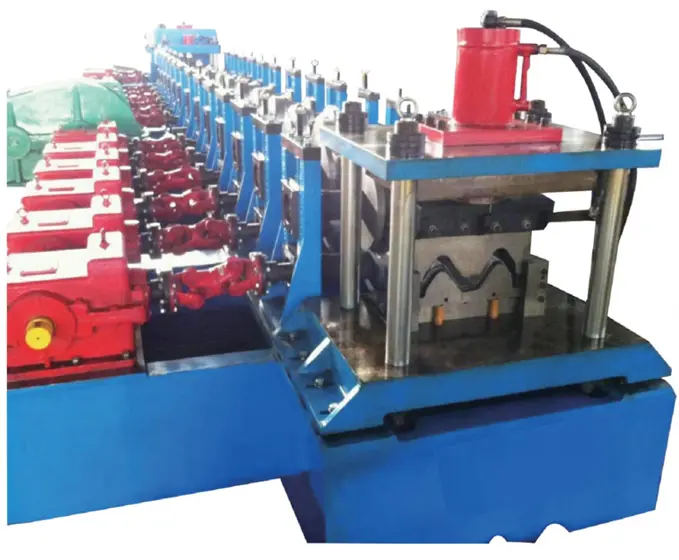

china guardrail roll forming machine

Guardrail Roll Forming Machine

Product details:

Material thickness (mm) 2–4mm
Forming speed (m/min) 10-12m/min
Roll station 16 stations (depend on the profile)
Main power (kw) 45 kw
Hydraulic power (kw) 7.5 kw
Control system PLC panasonic
Drive by chain
Shear material cr12

Guardrail roll forming machine also known as highway guardrail roll forming machine, is a type of equipment used to produce guardrails for highways and other applications. Guardrails are important safety components that are designed to prevent vehicles from leaving the road and to reduce the severity of accidents. Highway fence guardrail roll forming machines can produce guardrails in a variety of sizes and shapes, and can be customized according to specific project requirements. Metal highway guardrail roll forming machines are widely used in the construction of highways, railways, bridges, and other infrastructure projects.

tea pouch packing machine price in india

CZU Steel Purlin Frame Roll Forming Machine

Product details:

Material thickness (mm) 1.5–3mm
Forming speed (m/min) 10-15m/min
Roll station 16 stations (depend on the profile)
Main power (kw) 18.5 kw
Hydraulic power (kw) 11 kw
Control system PLC panasonic
Drive by chain
Shear material cr12

This purlin roll forming machine is a CZU steel purlin frame roll forming machine, it is a specialized equipment used to produce CZU steel purlin frames. Purlins are structural components of building frameworks that support the roof and walls, typically made of steel, and they are designed to provide support and stability to the structure while transferring the weight of the roof to the walls. They can be customized to create different sizes and profiles to meet specific project requirements. These purlin frames are commonly used in industrial buildings, commercial complexes, and various other construction applications. CZU steel purlin frame roll forming machines provide efficient and reliable production of high-quality CZU steel purlin frames.

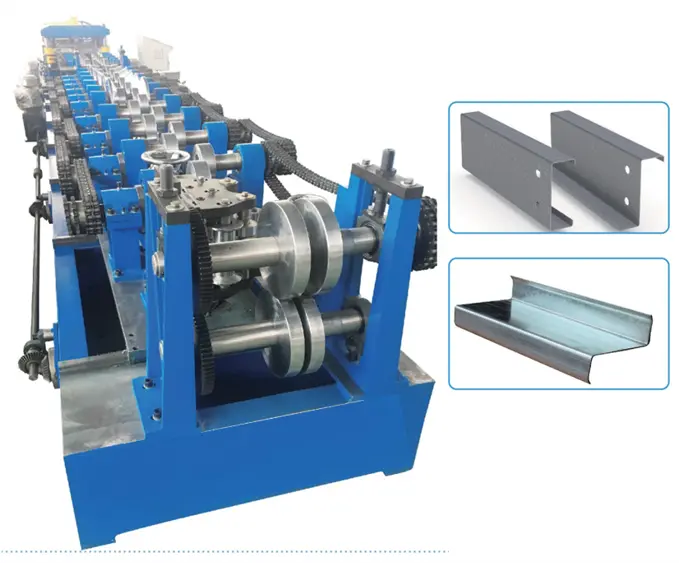

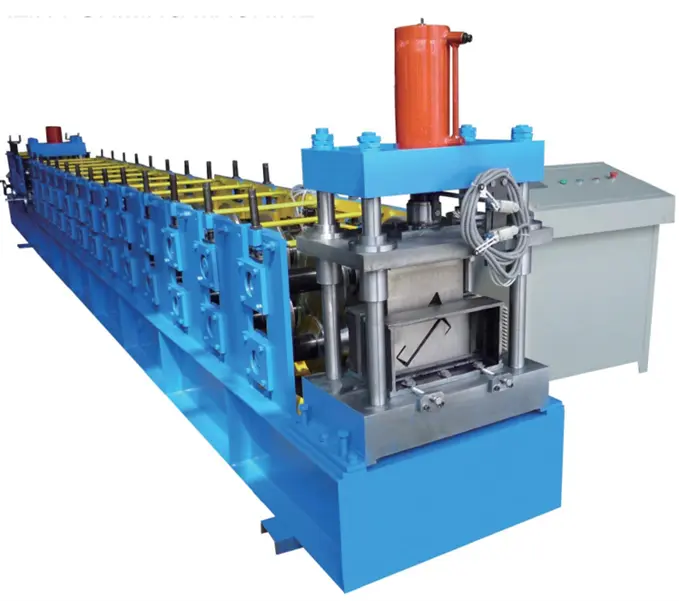

quick changeable c/z purlin roll forming machine

Interchangeable C/Z Purlin Roll Forming Machine

Product details:

Material thickness (mm) 1.5–3mm
Forming speed (m/min) 10-15m/min
Roll station 16 stations (depend on the profile)
Main power (kw) 18.5 kw
Hydraulic power (kw) 11 kw
Control system PLC panasonic
Drive by chain
Shear material cr12

This purlin roll forming machine is a CZ purlin roll forming machine that used in the production of C and Z-shaped steel profiles. C Z purlin roll forming machine has two sets of rollers that utilize a roll forming process to shape a metal strip into the desired C or Z profile. Importantly, this C/Z purlin metal roll forming machine can quickly and easily switch between producing both C and Z-shaped purlins without major adjustments or additional tools, so it is also called an interchangeable c/z purlin roll forming machine/quick changeable c/z purlin roll forming machine. The changeable c z purlin cold roll forming machine is a versatile machine that allows manufacturers to quickly adapt to different project requirements and optimize production efficiency. These quick changeable c/z purlin roll forming machines are commonly used in the construction industry for manufacturing roof trusses, wall frames, and other structural components. They offer high efficiency and precision in the production process, helping to reduce labor costs and improve product quality. By using an interchangeable c/z purlin roll forming machine, manufacturers can simplify their production processes, reduce material waste, and produce high-quality purlins with precise dimensions. The interchangeable c/z purlin roll forming machine is an essential tool for any company involved in the production of C and Z-shaped steel profiles.

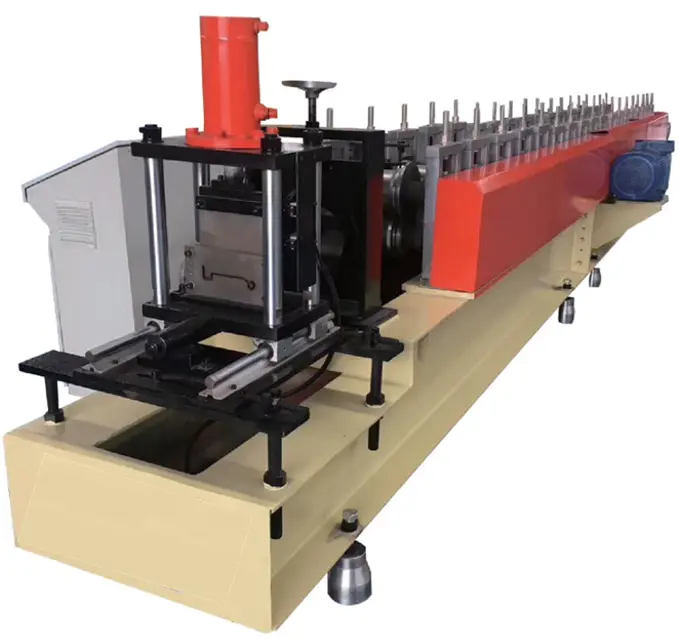

roller shutter door roll forming machine

Shutter Door Roll Forming Machine

Product details:

Material thickness (mm) 0.6–1.2mm
Forming speed (m/min) 10-15m/min
Roll station 14 stations (depend on the profile)
Main power (kw) 5.5 kw
Hydraulic power (kw) 3 kw
Control system PLC panasonic
Drive by chain
Shear material cr12

A shutter door roll forming machine also known as roller shutter door roll forming machine, it is a specialized equipment used to manufacture shutter doors or roller shutters, which are commonly installed on windows, doors, garages, and commercial buildings for security, insulation, and noise reduction purposes. The shutter roll forming machine employs a continuous roll forming process to shape a metal strip (usually steel or aluminum), into the desired profile of the shutter door. Different sets of rollers and tooling are used to create the various components of the shutter door, such as slats, tracks, guides, and end caps. The door shutter roll forming machine consists of multiple stations, including decoiling, leveling, roll forming, cutting, and automatic stacking. The roller shutter roll forming machine is usually equipped with computerized controls to ensure precise and consistent production. It can also be customized to produce shutter doors of different sizes, shapes, and specifications according to customer requirements. By using a roll forming machine rolling shutter, manufacturers can efficiently produce high-quality shutter doors with precise dimensions and consistent profiles. These shutter door roll forming machines help streamline the production process, minimize material waste, and improve productivity in the manufacturing of shutter doors.

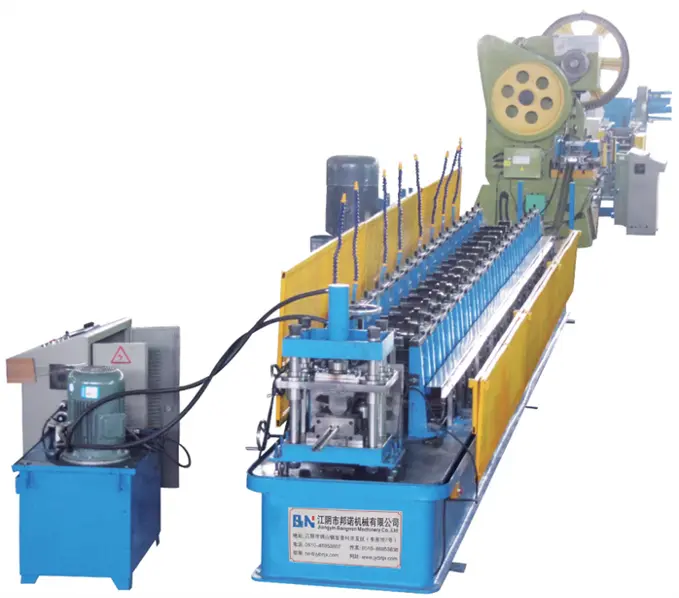

stud and track roll forming machine

Track Roll Forming Machine

Product details:

Material thickness (mm) 1.5–3mm
Forming speed (m/min) 10-15m/min
Roll station 18 stations (depend on the profile)
Main power (kw) 30 kw
Hydraulic power (kw) 7.5 kw
Control system PLC panasonic
Drive by chain
Shear material cr12

A track roll forming machine is used to produce metal tracks that are used in the construction of walls, ceilings, and partitions. Track roll forming machines can be customized to produce tracks of varying sizes and shapes depending on the specific needs of the application. Track roll forming machine provides many advantages over traditional methods of bending and shaping metal strips. It allows manufacturers to produce metal tracks quickly and efficiently, with minimal waste and consistent quality. The completed tracks are highly accurate, with precise measurements and uniform shapes. This means that the installation process is quicker and easier, resulting in cost savings during construction projects. We are track roll forming machine manufacturers, welcome to contact us for more details.

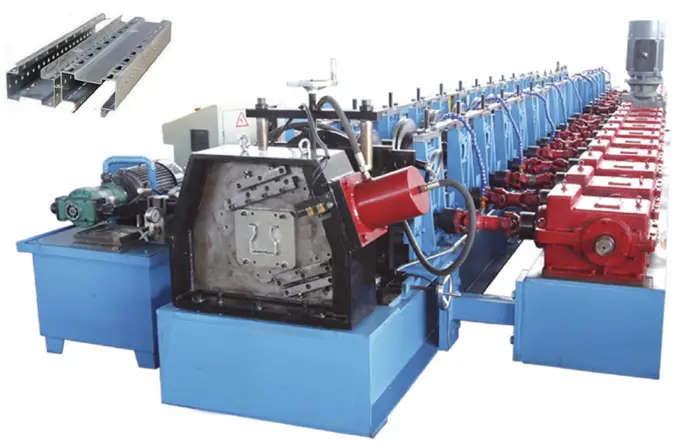

metal storage rack /upright pillar roll forming machine

Shelf Storage Rack Roll Forming Machine

Product details:

Material thickness (mm) 1.5–3mm
Forming speed (m/min) 10-15m/min
Roll station 18 stations (depend on the profile)
Main power (kw) 30 kw
Hydraulic power (kw) 11 kw
Control system PLC panasonic
Drive by chain
Shear material cr12

This shelf storage rack roll forming machine is a storage shelf column cold roll forming machine, also known as shelving pillars roll forming machine. The storage shelf column cold roll forming machine is specially used to manufacture metal pillars or uprights that are commonly used in shelving systems. These pillars provide the vertical support for shelving units in warehouses, retail stores, libraries, and various storage facilities. During the roll forming process, the shelf keel roll forming machine can be adjusted to create different types of pillar profiles, such as square, rectangular, or custom designs based on the customer's requirements.
By using precise control and computerized automation, the shelving pillars roll forming machine ensures consistent quality and accurate dimensions for each produced pillar. This results in pillars that are sturdy, durable, and capable of supporting the weight of shelves and stored items. The storage rack shelf frame roll forming machine often incorporates additional features such as punching holes or slots along the length of the pillars to allow for adjustable shelving heights or accessory attachments. Shelving pillars roll forming machine allows for efficient and cost-effective production, reduces material waste, and enables customization according to specific shelving system requirements. Is helpful to the production of high-quality shelving systems that offer reliable storage solutions for various industries.

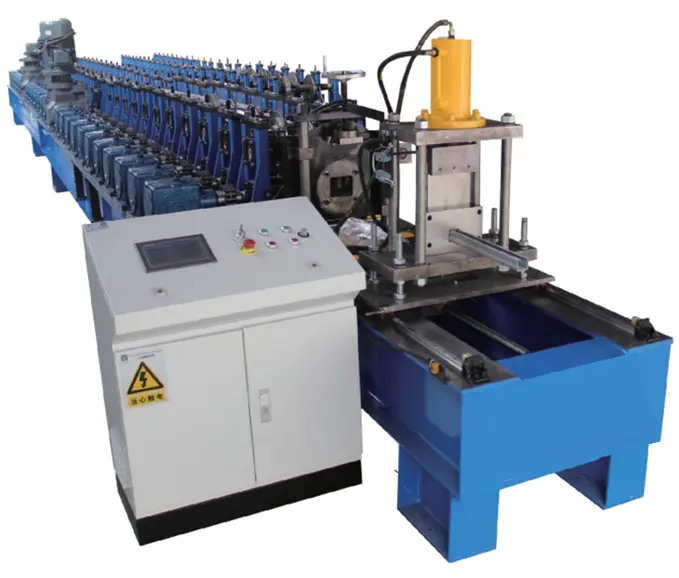

pv bracket roll forming machine suppliers

PV Solar Bracket Roll Forming Machine

sugar pouch packing machine price approx.: 5000 USD

Product details:

Material thickness (mm) 1.5–3mm
Forming speed (m/min) 10-15m/min
Roll station 28 stations (depend on the profile)
Main power (kw) 30 kw
Hydraulic power (kw) 3 kw
Control system PLC panasonic
Drive by chain
Shear material cr12

A PV solar bracket roll forming machine is used to manufacture metal brackets or support structures for photovoltaic (PV) solar panel installations. These brackets are designed to securely mount and position solar panels on rooftops, ground-mounted systems, or other appropriate surfaces. The solar photovoltaic bracket roll forming machine can be adjusted to create different types of bracket profiles, such as L-shape, C-shape, or custom designs based on the specific installation requirements. The photovoltaic bracket roll forming machine may incorporate additional features such as punching holes, slots, or notches in the brackets to facilitate the attachment of the solar panels and ensure proper alignment and stability. By utilizing precise control and computerized automation, the PV solar bracket roll forming machine ensures consistent quality and accurate dimensions for each produced bracket. This results in brackets that are sturdy, durable, and capable of withstanding various weather conditions. The PV solar bracket roll forming machine contributes to the manufacturing of high-quality brackets that provide reliable support for PV solar panels, promoting the adoption of renewable energy solutions.

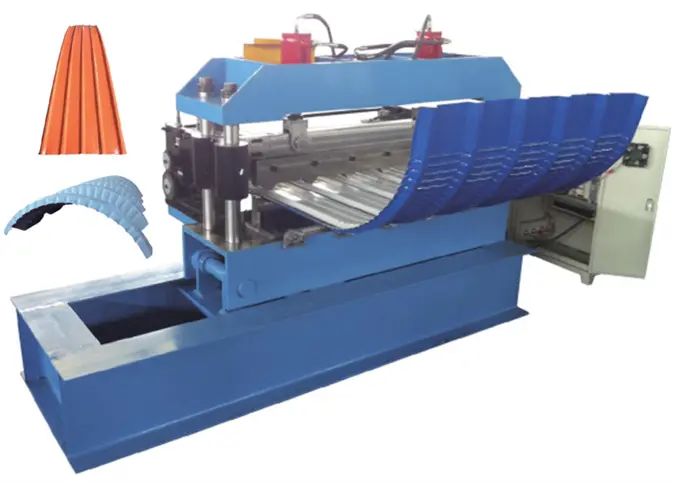

roof crimping metal roll forming machine

Curving Unistrut Roll Forming Machine

Product details:

Material thickness (mm) 0.3–0.8mm
Forming speed (m/min) 10-15m/min
Main power (kw) 1.5 kw
Hydraulic power (kw) 5.5 kw
Control system PLC panasonic

A curving unistrut roll forming machine, also known as a bending machine or roll bender, is a mechanical device used to bend or curve various materials such as metal into specific shapes or profiles. Metal curving unistrut roll forming machine is commonly used in industries such as construction, manufacturing, and metalworking. Users can adjust the steel curving unistrut roll forming machine settings to achieve the desired curvature, then the material can be bent in different ways, such as circular, elliptical, or custom-designed curves based on the specific application or project requirements. Whether it's creating curved metal sheets for architectural panels, bending tubes for furniture frames, or shaping plastic profiles for automotive parts, a curving unistrut roll forming machine provides the necessary tools and capabilities for precise and efficient material bending.

◆ Roll forming machine manufacturers

We are professional roll forming machine manufacturers, engaged in the design, production and sales of complete sets of cold bending equipment for a long time. We have various roll forming machine for sale, such as roof roll forming machine, floor deck roll forming machine, c z u roll forming machine, c/z exchangeable roll forming machine, c/z purlin metal roll forming machine, fully automatic solar mounting structure roll forming machine, downpipe roll forming machine, light gauge steel keel roll forming machine, roller door roll forming machine, guardrail roll forming machine, storage shelf column cold roll forming machine etc.
We have rich design experience and strong production capacity for various non-standard, special-shaped and special-shaped cold-formed steel complete sets of equipment. Especially good at cold bending of ultra-wide and ultra-thick plates and special materials (such as stainless steel, weathering steel, high carbon steel, ultra-low carbon steel, aluminum plates, copper plates, alloy plates, and other special metal material plates). Besides of the above roll forming machines, we also produces hydraulic shearing machines, CNC bending machines, steel coil slitting units, steel coil leveling and cross-cutting units and other equipment. and cold bending peripheral equipment. Welcome to contact us for more specific communication.
