Plate rolling machine

The plate rolling machine is an equipment that takes advantage of the rollers to roll the plate and can roll different shapes of workpieces, such as round workpieces, tapered workpieces, etc. So, it is a very important metal processing equipment. The plate rolling machine working principle uses the action of external forces such as hydraulic force and mechanical force to drive the roller and roll the plate to different shapes. It can process oval parts, arc parts, and cylindrical parts according to different rotational movements and positions.

● Our Plate rolling machine for sale

•

  Plate roller machine W11-6*1500mm

•

  Plate rolling machine for sale 12*2100mm

•

  Plate bending machine 12*2000mm

•

  Roll plate bending machine 20*2500mm

•

  Metal rolling machine W12NC-8*2000mm

•

  Sheet metal rolling machine W12CNC-25*2500mm

● Types of plate rolling machine

The types of plate rolling machine are different according to different usage applications. We can divide it into 3 roll plate rolling machine and 4 roll plate rolling machine according to number of the rollers. The 3 roll plate rolling machine is also divided into symmetric 3 roll plate rolling machine, asymmetric 3 roll plate rolling machine, horizontal downward adjustment 3 roll plate rolling machine, oblique downward adjustment 3 roll plate rolling machine, upper roller all-round 3 roll plate rolling machine, and hydraulic plate rolling machine.

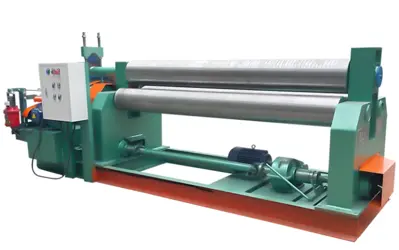

1. Symmetric 3 roll plate rolling machine
The symmetric 3 roll plate rolling machine structure is three rollers symmetry. The upper roller performs vertical rising and lowering movements in the symmetrical position of the two lower rolls. The Screw control the rotational motion of the two lower rolls and the output gear of the reducer meshes with the lower roller gear to provide the power for rolling the plates. The disadvantage of the symmetric 3 roll plate rolling machine is the top of the plate needs other equipment to pre-bend.

2. Asymmetric 3 roller plate rolling machine
The asymmetric 3 roller plate rolling machine structure is three rollers asymmetry. The two lower rolls perform vertical rising and lowering movements. The upper roller serves as the main drive and meshes with the upper roller gear through the lower roller gear to provide power for rolling plates. The side rollers perform tilting rising movements. Therefore, the asymmetric 3 roller plate rolling machine has a compact structure, easy operation, and maintenance, and it has the functions of pre-bending and rolling.

3. 3 rollers hydraulic plate rolling machine
The upper roller of the hydraulic plate rolling machine can perform vertical rising and lowering movements and the power of the vertical rising and lowering movements is obtained by the hydraulic oil in the hydraulic cylinder acting on the piston rod. The reducer drives the lower roll to provide power for roll plates. The bottom of the lower roll has the adjusted support roll and the shape of the upper roll is drum shape, which can improve the straightness of the product. It is suitable for the extra long specifications and various cross-sectional shape tanks.

4. 4 roller plate rolling machine for sale

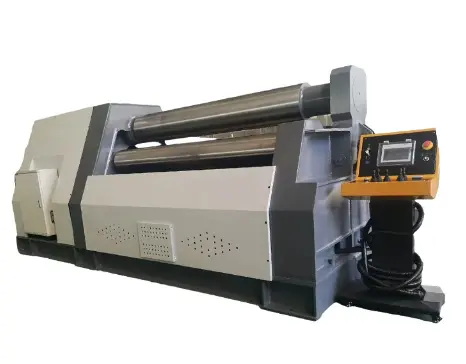

The 4 roller plate rolling machine for sale is a very important metal process equipment to roll metal plates. The working principle is to roll the metal plates into the required shape by the friction and compression forces between four rolls. The position and speed of the four rolls can be adjusted to achieve different rolled effects.

● Steel plate rolling machine applications

The plate rolling machine is also called steel plate rolling machine and can produce elliptical workpieces and tapered workpieces in pressure vessels, machinery, water and electricity, construction, and other industries. It has the functions of pre-bending, roll round, and leveling functions. The upper roll and lower rolls are the main drive and adopt the hydraulic motor to drive. The friction force between the roll and the steel plate drives the side roll to roll the steel plate. The side rollers perform tilting rising movements and the lower rolls perform vertical rising and lowering movements. The lower rolls rise to clamp the steel plate end and the side roll performs tilting rising movements to achieve the pre-bending.

The steel plate rolling machine for sale is an important equipment in industrial production and it has wide applications in different industries, such as boiler, shipbuilding, petroleum, woodworking, metal structure, and machinery manufacturing industries. As a special machine, it occupies an important position in industrial basic processing. The metal plate rolling machine can roll different materials of steel plate. The rolling machine for steel plate also has wide applications in automotive and military industries, it can roll required products according to different requirements.
