Metal band saw

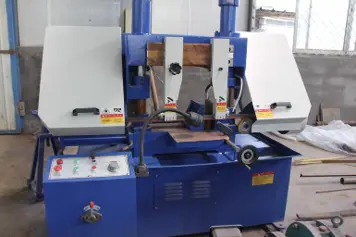

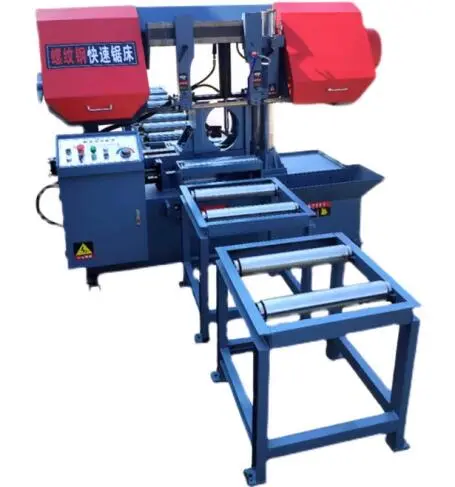

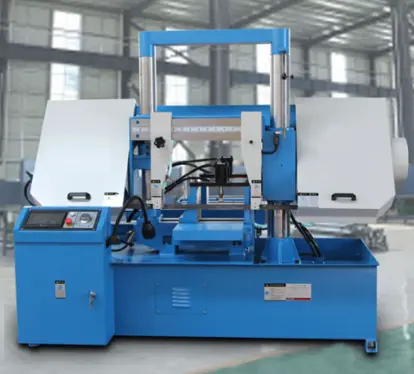

The working principle of metal cutting band saw blades for sale is to use the rotation of the drive wheel to make the band saw metal cutting blade cyclic motion to achieve the cut of the metal materials. The metal band saw blades for sale consist of the driving wheel, tensioning wheel, guide wheel, frame, motor, metal cutting band saw blades guide. The between the driving wheel and tensioning wheel is connected by a band saw metal blade and forms a continuous ring. The moto drives the driving wheel and the tensioning wheel adjusts the tension of the metal cutting horizontal band saw to make sure it is not loose. The metal blade for band saw starts to move in a high-speed cycle and the blade starts to cut the metal materials. The guide wheel controls the direction of movement and the distance of the metal materials and metal cutting horizontal band saw. So, horizontal metal band saw for sale achieves efficient, precise, and flexible cutting of metal materials by adjusting the positions and angles of the driving wheel and tensioning wheel.

The hydraulic transmission system of the jet metal band saw is controlled by the electrical control to finish the up and down lifting of the saw frame and clamp. The feed speed can be adjusted by the speed control valve and meet the cut requirements of the different materials products.

The saw blade drive system of the metal cut band saw. The motor of the worm gear case drives the worms and worm gears to drive the driving wheel to rotate by the pulleys and v-belts. And drives the saw blade wrapped around the rim to perform a cutting rotary motion. The hydraulic circulation system consists of the speed control valve and lifting oil cylinder to control the lifting speed of the saw frame.

Turn the brake button of the horizontal metal cutting band saw machine clockwise and the oil pump motor and gear pump start work. The oil enters the pipeline through the filter screen and adjusts the overflow valve to ensure the working pressure meets the requirements. Instead, turn the brake button counterclockwise and all motors stop working.

The saw frame lifting system of the band saw blades for metal cutting is controlled by the button. The working button controls the dowing of the saw frame, the dowing button controls the quick down of the saw frame, and the rise button controls the rising of the saw frame.

The metal cutting band saw for sale is easy to malfunctions and damage in the long-term working process. For these technical problems, we can reduce the occurrence of malfunctions through suitable maintenance.

After finishing the work, please clean the iron filings on the machine. Open the cooling water switch and use the cooling water to clean the work table after the band saw blade for cutting metal stops rotating, and adjust the saw frame to the lowest position.

Before using the metal saw band, we should check this machine according to the following programs.
1. Check the hydraulic oil gauge and whether the hydraulic oil is over the L red line, if the hydraulic oil is less than the L red line, we should add the appropriate No. 32 anti-wear hydraulic oil.
2. Check the colling water gauge and whether the colling water is over the L red line, if the colling water is less than the L red line, we should add the appropriate colling water.
3. Check whether metal band saw blade is located between the left and right saw band wheels and the front and rear tungsten steel guide blades.
4. Check whether the wire brush is located at the bottom of the sawtooth.
5. Add the machinery oil to the movable clamp guide rail.
6. Add the machinery oil to the feeding bed floating clamp guide rail.
