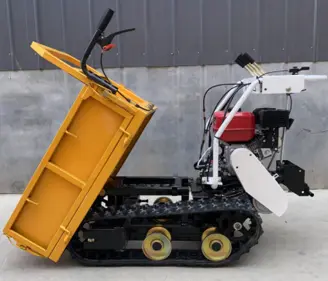

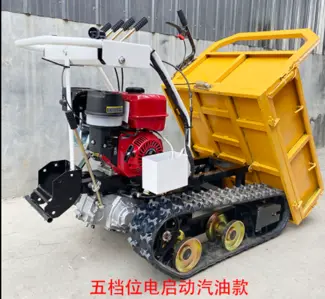

Five gears electric start petrol track barrow
Model：L568-1 Track barrow cost：780 USD /5200RMB Max. Load：500KG
● Petrol track barrow Features

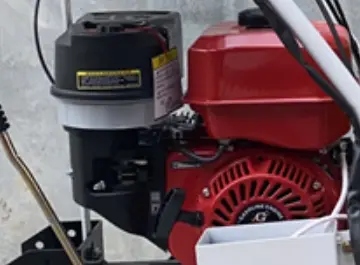

Well-known 212cc engine electric start 170f engine, strong power, low fuel consumption, stable transportation

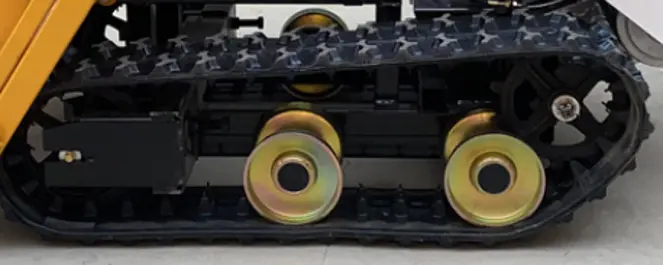

Steel wire manganese block rubber track, the gear is thickened and strengthened, and the sealing performance is good.

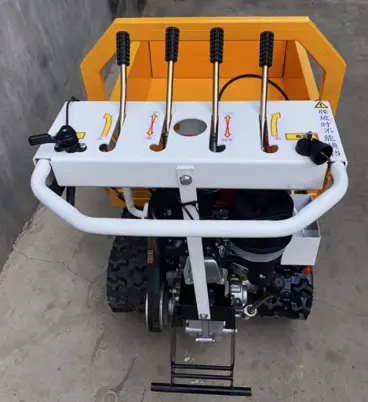

Electric start + five gears (with climbing gear), saving time and labor

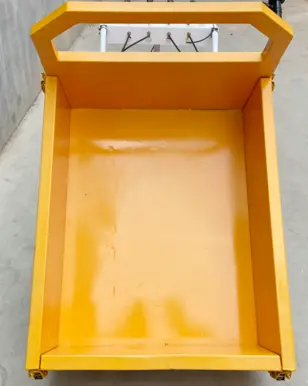

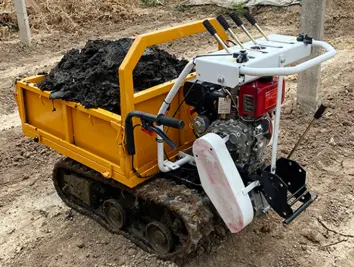

Thicken track barrow dumper cargo box, the Max. load on the flat road is 500 kg, and on the steep slope load is slightly less, should be determined according to the specific situation; the cargo door is removable.

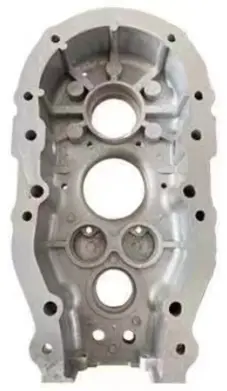

Thicken shell, enlarged bearing position, the service life is doubled

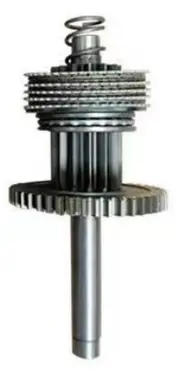

Oil-immersed friction plate steering, which can control the steering speed, and can also steer at high speeds
● Electric track barrow spec
| Model No. | L568-1 | Engine brand | YANSUMI |
|---|---|---|---|
| Track barrow dimensions | 1600*700*1200 mm | Engine model | 170F |
| Cargo box size | 880*700*310 mm | Power | 7.5hp |
| Drive mode/brake | Mechanical transmission | Start method | Electric start |
| Speed | 0-6 km/h | Load weight | 500 kg |
| Track specifications | 150*60*3 | Recommended load | 350 kg |
| Track standard | Copper wire manganese block rubber track | Track barrow weight | 230 kg |
| Wheel materials | Precision cast steel | drive gear | 5 |
| Shaft materials | 20 Chromium manganese titanium heat treatment | Cargo box ground clearance | 320 mm |

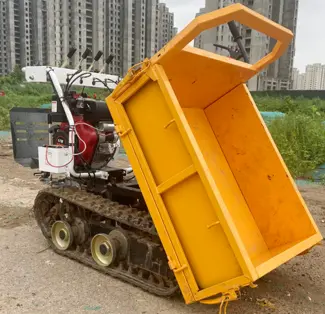

| Dump function | Manual 60° angle | Slope/Uphill Height | 25°/45° |

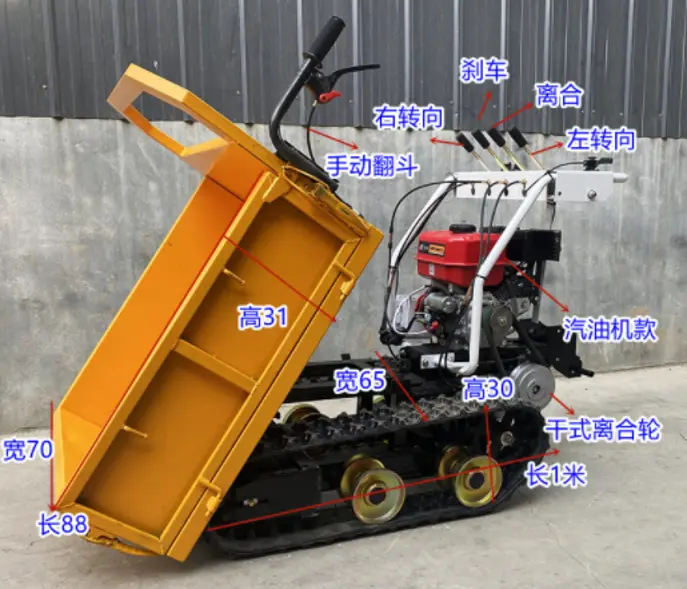

● Motorized track barrow structure analysis
● Power track barrow optional configure

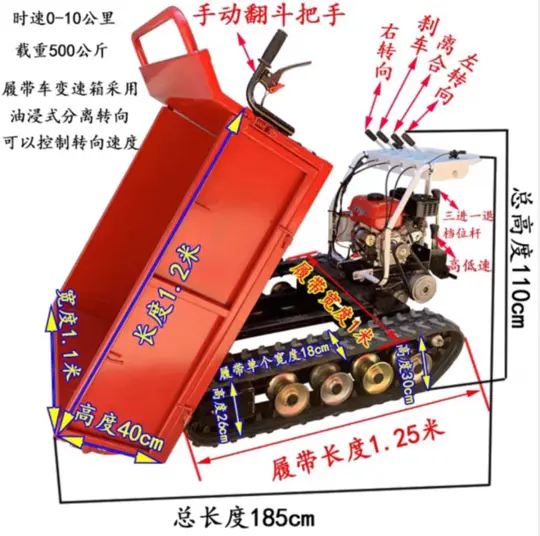

Optional cargo box size: 1.2*1.1*0.4,
1.5*1.2*0.4, 1.2*0.9*0.4.
Kindly note, the size of the cargo box increases, and the corresponding chassis size also increases
Optional tires quantity:
On the basic model, 2 tires are added on both sides of the track
Tip:
Compared with the basic track barrow model, this model has the same track barrow weight, but in some bad road conditions (such as steep slopes, muddy roads, unpaved mountain roads), this model is more powerful and more stable in transportation.
Welcome to contact us for track barrow cost and track barrow parts and more track barrow knowledge such as Cleaning and maintenance precautions for mini tracked barrow.

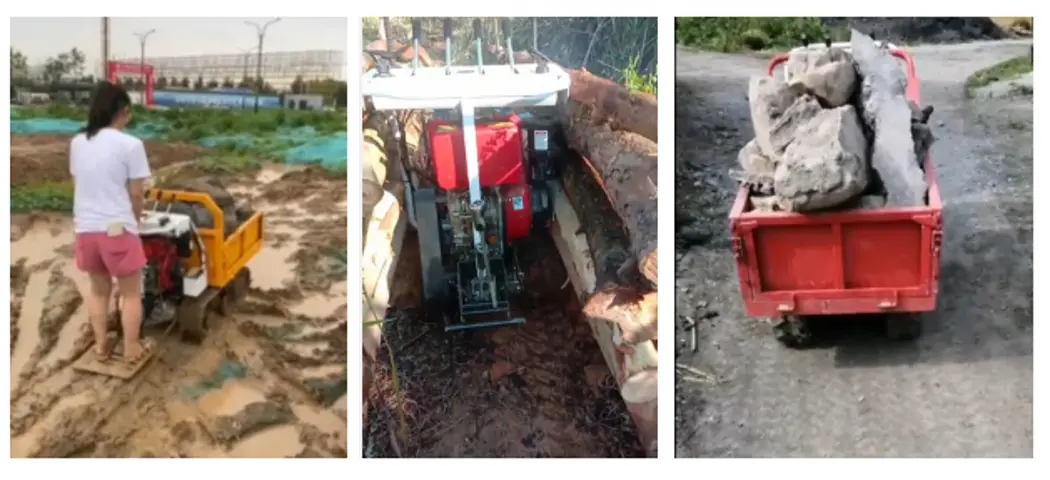

● Application of track barrow for hire

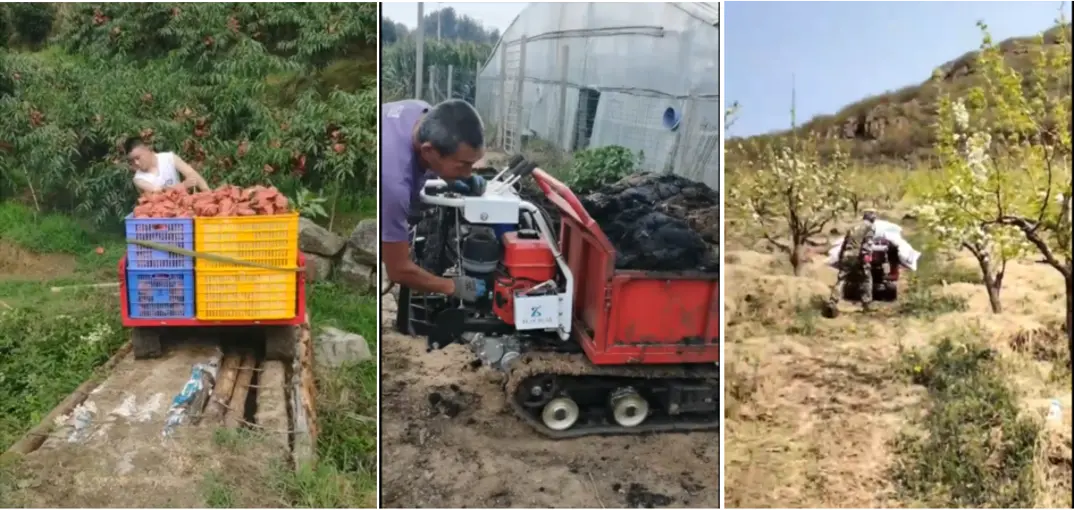

The track barrow for hire is suitable for the transportation of orchard fruits, greenhouse flowers, vegetables, paddy field seedlings, feed, fertilizers and other agricultural and forestry products; it is easy to operate, saving time and labor.
This petrol track barrow hire also suitable for mountain/hill/sand/dirt road and gravel road to transport goods such as gravel, wood, sand and so on, it can be said to be an all-terrain track barrow dumper, great save transportation costs and saves manpower and material resources.

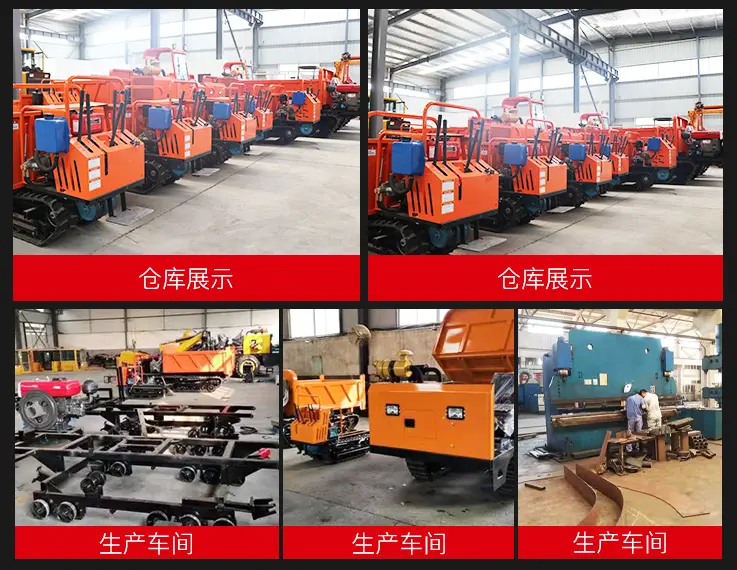

● Supplier photo
