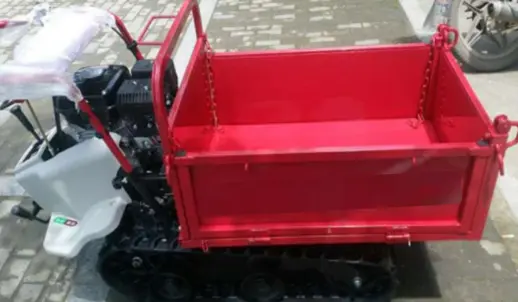

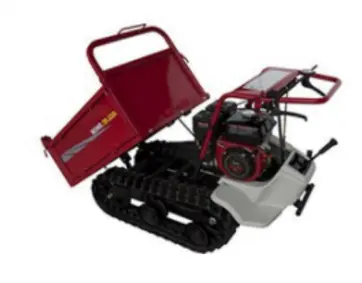

320kg petrol track barrow for sale
Model：ZY-320 Track barrow cost：1100 USD /7200RMB Max. Load：320KG
● Features of track barrow for sale
High-quality 168F engine, strong power, low fuel consumption, cost saving, low noise
Small and flexible,small volume,The turning radius is 1.15m, the steering is flexible and light, and it is easy to adapt to various complex scenes.
8 gears to choose freely Various gears, 6 forward gears, 2 reverse gears, can be freely selected in various road conditions.
Wear-resistant track The chassis and bracket are made of special materials with high strength and rigidity to ensure the stability of the small crawler transport vehicle; the driving wheel is made of high-strength alloy steel, which has good wear resistance and long service life.
● Petrol track barrow dumper data
| Track barrow dimensions L*W*H | 1600*600*1000 mm | Engine model | 168F |
|---|---|---|---|
| Cargo box size | 850*600*400 mm | Power | 6.5hp |
| Drive mode/brake | Mechanical transmission | Start method | hand pull start |
| Wheelbase width | 550 mm | Load weight | 320 kg |
| Track specifications | 160*60*37 Engineering thickening | Recommended load weight | 280 kg |
| Track standard | Copper wire manganese block rubber track | Track barrow weight | 190 kg |
| Wheel materials | Precision cast steel | drive gear | 6 forward gears + 2 reverse gear (with auxiliary transmission) |

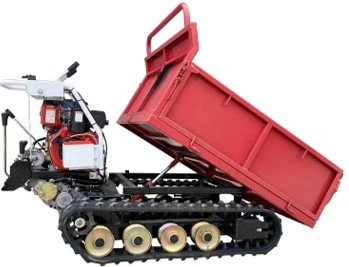

| Dump function | Manual 60° angle | Slope/Uphill Height | 25°/45° |

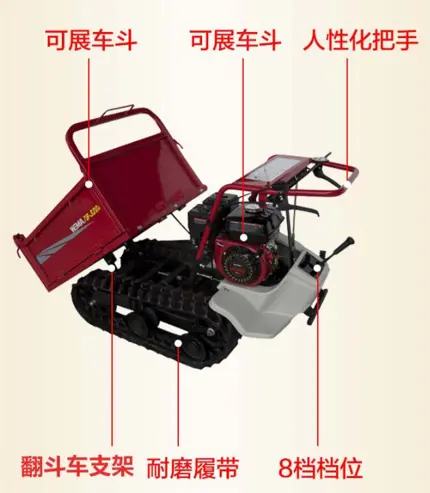

● Structural Analysis of petrol track barrow
| 可展车斗 | expandable cargo box |
|---|---|
| 人性化把手 | humanized handle |
| 发动机 | petrol power engine |
| 翻斗车支架 | cargo box dump bracket |
| 耐磨履带 | wear-resistant track |
| 8档档位 | 8 gears |
Track barrow spares and optional custom status
We can upgrade the track driven wheelbarrow through add some track barrow spares and new design, for example:

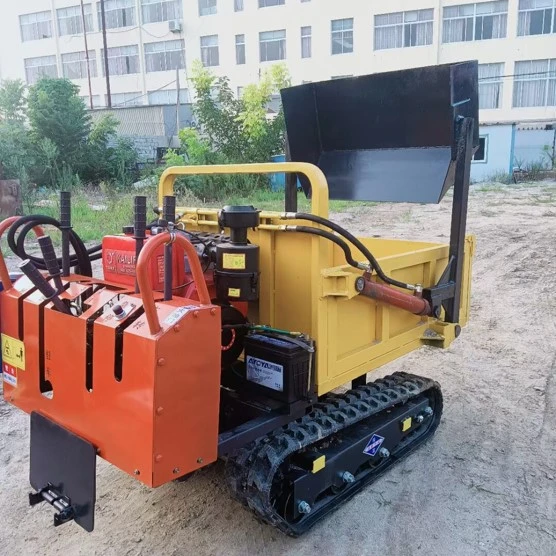

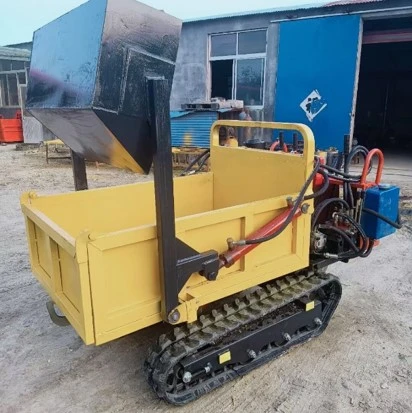

add a bucket and make the tracked power wheelbarrow for sale become self loading track barrow;

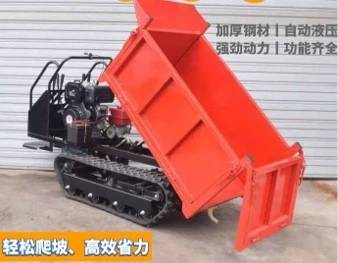

increase hydraulic design to make the motorised wheelbarrow tracked become automatic loading and unloading skip loader track barrow;

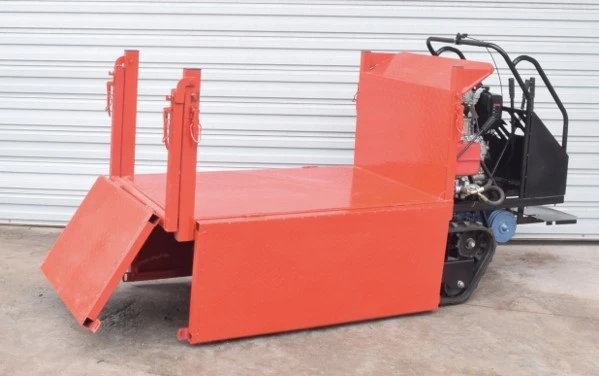

enlarge the cargo box size to make the power wheelbarrow tracked become a 1 ton track barrow even more heavier load capacity etc.
Also welcome to give us more track barrow reviews and feedback, we will be great appreciate for you, because we are really willing to do all our best to make our tracked power barrow hire to be a best track barrow for you.
● Application of track barrow dumper for sale

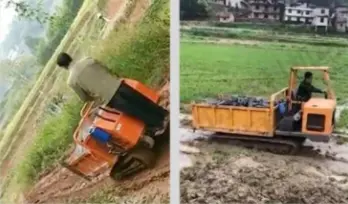

The small track barrow dumper for sale replaces the wheeled walking with the crawler, reduces the damage to the ground, and the crawler-type traveling device reduces the pressure per unit area between the machine and the ground, this make track barrow can adapt to complex and harsh road conditions such as rice fields, swamps, muddy field roads, rugged mountain roads, soft grass, mountain forests and deserts, slippery ice and snow, etc. Tracked power barrow hire is widely used in agriculture, forestry orchard transportation, freight yard loading, water conservancy construction, infrastructure engineering, and mining sites.

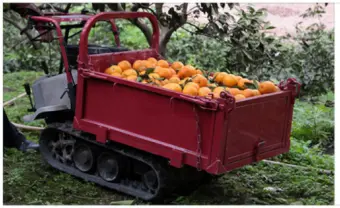

The tracked power wheelbarrow is used to transport fruits. It is easy to operate, has a small load-to-ground specific pressure, and can be used for deep mud pits and pools, as well as complex stone roads, saving time and labor.

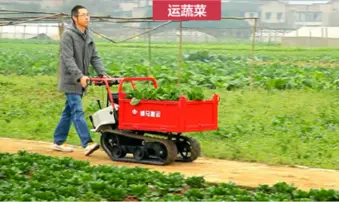

The track barrow dumper for sale has a small turning radius and can pass through a width of 0.57m, adapting to narrow sites. It is suitable for transporting flowers and vegetables between greenhouses without leaving imprints on the ground, which is more labor-saving and more efficient than ordinary flatbed transport.
The tracked wheelbarrow wheel can also easily pass through the narrow road, which is suitable for the transportation of rice seedlings. The mud feet are about 20cm, and the one-time load is large, saving labor and time
The mini tracked barrow is suitable for the loading and unloading and transportation of farmland construction, water conservancy projects and construction sites. It saves time and labor, has good driving performance and strong adaptability, solves the problem of limited driving in more complex and harsh road conditions, and has stable transportation.

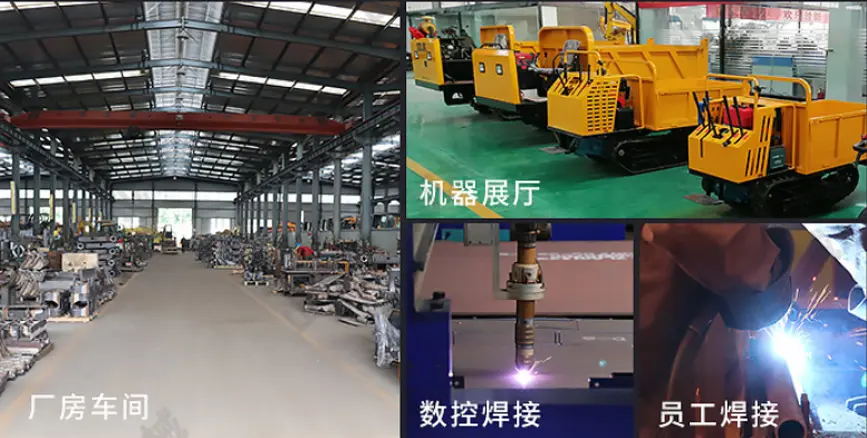

Factory photo
Reasons and solutions for oil leakage of track barrow for sale
The common reasons for oil leakage of track barrow for sale are as follows:
1. Parts quality problems of special vehicles; Raw material problems or manufacturing process problems of parts and components; Improper assembly at high speed, unclean mating surfaces, damage and displacement of gaskets Or not installed in accordance with the operating regulations.
2. Uneven tightening force of the tightening nut, slippery thread breaking or looseness falling off, etc. lead to work failure; After long-term use, the sealing material wears too much, deteriorates due to aging, and fails due to deformation; Too much lubricating oil is added, the oil level is too high or the wrong oil is added.
3. The joint surface of the parts (side covers, thin-walled parts) is flexed and deformed, the casing is damaged, and the lubricating oil seeps out. After the vent plug and one-way valve are blocked, due to the air pressure difference inside and outside of the casing, oil leakage will often occur at the weak seal.
Measures to prevent oil leakage of tracked power barrow for sale
1. Pay attention to the role of padding.
Gaskets between components at resting locations (such as each joint end face, each end cover, shell, cover pad, flat enamel cover, etc.) act as leak-proof seals. If the material, production quality and installation do not meet the technical specifications, it will not be able to seal and prevent leakage, and even accidents will occur, such as the oil pan or valve cover, which is not easy to compact due to the large contact area, resulting in oil leakage.
2. All kinds of fastening nuts on the track barrow must be tightened according to the specified torque.
If the nut is too loose, it will not press the gasket tightly and cause leakage; If it is too tight, the metal around the screw hole will bulge or the screw will be slipped, causing oil leakage.
3. Avoid blockage of the one-way valve and ventilation valve of the tracked power barrow, which will cause the temperature in the box to rise, and the oil and gas will fill the entire space and cannot be discharged, which will increase the pressure in the box, increase the consumption of lubricating oil and the replacement cycle shorten. After the engine ventilation system is blocked, the movement resistance of the piston is increased, which increases the fuel consumption.
4. It is better to change the engine oil regularly.
