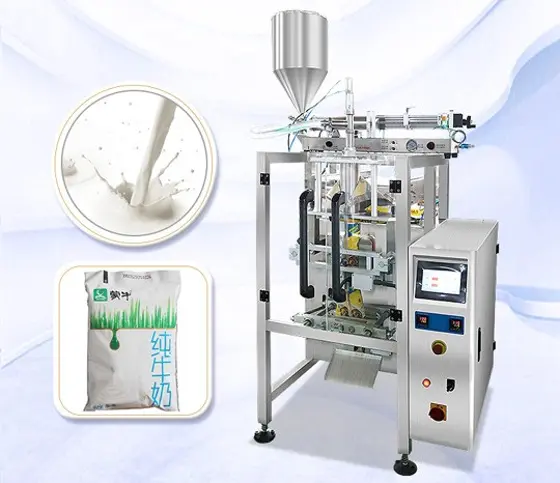

Multi-functional liquid pouch packing machine
◆ Pouch packing machine description

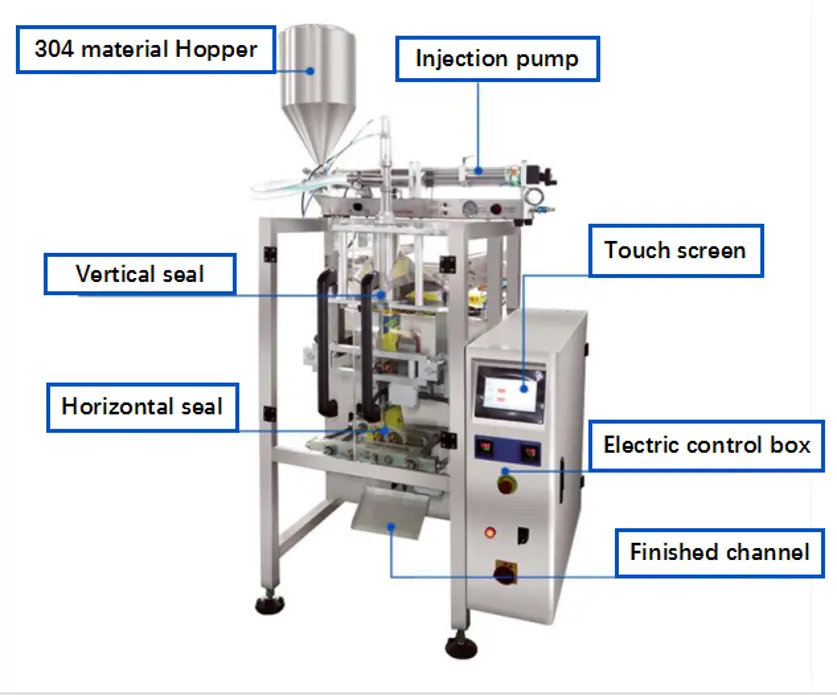

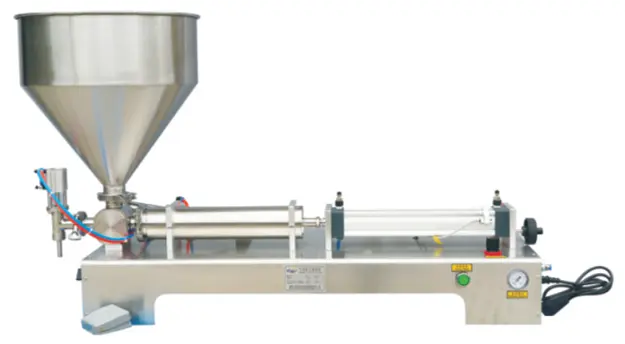

This multi-functional liquid pouch packing machine is composed of a dual-purpose filling machine for liquids and pastes, combined with the main unit of a small liquid pouch packing machine. It can not only fill various pure liquids with good flowability(like drinking, yellow wine, soy sauce, rice vinegar, fruit juice, etc.) but also be used for filling and packaging liquids with particles, viscous pastes, and sauces, such as tomato sauce, peanut butter, jam, chili sauce, bean paste, detergent, etc.
This liquid pouch packing machine is an automatic liquid pouch packing machine that adopts a color touchscreen and reliable PLC control with dual-axis high-precision output. The automatic liquid pouch packing machine completes the tasks of measuring, feeding, filling, bag making, and date printing during the packaging process automatically. Its packaging efficiency and accuracy are much higher than that of manual liquid pouch packing machines and semi-automatic pouch packing machine for liquid. The automatic liquid pouch packing machine greatly saves labor, improves packaging efficiency and quality, and is highly favored by users.
◆Parameters of liquid packaging pouch packing machine
This automatic liquid pouch packing machine main have three models: YS-420, YS-520, and YS-720, which correspond to different widths of packaging film and can accommodate products of different capacities, meet the diverse needs of users. The main differences among the three liquid plastic pouch packing machine models are highlighted in red. The liquid pouch packing machine price varies depending on the model. Custom production is also available based on the actual materials and packaging requirements.
| Model | YS-420 |
|---|---|
| Packing speed | 5-60 bags/min |
| Film width | 420mm |
| Measuring range | MAX.: 1500ml |
| Bag size | (L)80-300mm (W)60-200mm |
| Film thickness | 0.04-0.08mm |
| Film pulling method | Double belt pull film |
| Barometric pressure | 0.65mpa |
| Air consumption | 0.4m3/min |
| Power type | 2.2KW 220V 50HZ |
| Dimensions | (L)1450mm (W)1020mm (H)1350mm |
| Total Weight | 450kg |
| Model | YS-520 |
|---|---|
| Packing speed | 5-50 bags/min |
| Film width | 520mm |
| Measuring range | MAX.: 3000ml |
| Bag size | (L)80-400mm (W)80-250mm |
| Film thickness | 0.04-0.08mm |
| Film pulling method | Double belt pull film |
| Barometric pressure | 0.65mpa |
| Air consumption | 0.4m3/min |
| Power type | 4KW 220V 50HZ |
| Dimensions | (L)1450mm (W)1120mm (H)1650mm |
| Total Weight | 600kg |
| Model | YS-720 |
|---|---|
| Packing speed | 5-40 bags/min |
| Film width | 720mm |
| Measuring range | MAX.: 7500ml |
| Bag size | (L)100-500mm (W)200-250mm |
| Film thickness | 0.04-0.08mm |
| Film pulling method | Double belt pull film |
| Barometric pressure | 0.65mpa |
| Air consumption | 0.65m3/min |
| Power type | 6KW 220V 50HZ |
| Dimensions | (L)1780mm (W)1350mm (H)2040mm |
| Total Weight | 900kg |
◆ Product details
-
Bag former
The metal panels on both sides are folded and rolled into a bag, which is strong and beautiful. -

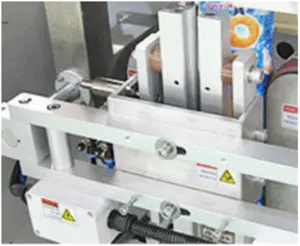

Vertical seal
Independent PID temperature control, vertical sealing is suitable for multi-style bags, more stable packaging molding, and guaranteed airtightness -

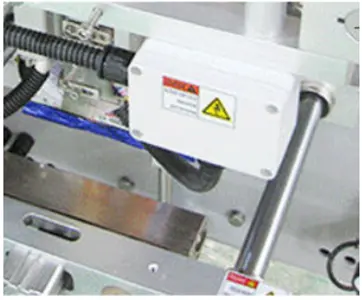

Horizontal seal
Constant temperature heat sealing cutter, sealing the front and rear ends of the package, optional gusset
-

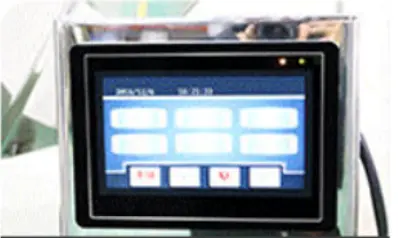

Touch screen
The automatic liquid pouch packing machine adopts touch screen control in both Chinese and English, controls the parameter adjustment through the intelligent system, and runs by piece counting. Parameter adjustment is more convenient. -

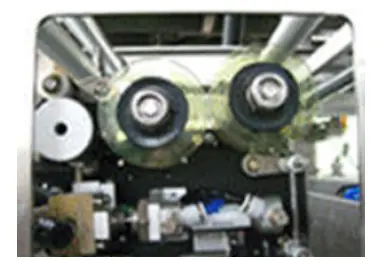

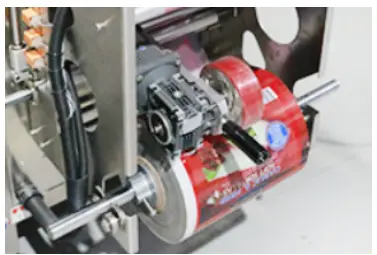

Film release device
The servo motor is used to pull the film, so that the film is more stable and does not run away. The external film release mechanism is used to make the installation of the film more convenient and safer. -
Coding machine
The liquid sachet pouch packing machine uses imported coding machine, track and print the production date, batch number, etc., with fast printing speed and wide printing area, the printing arrangement is flexible, and the one-key operation is faster and more stable.
◆ Applications of liquid pouch packing machine
This multi-functional automatic liquid pouch packing machine has a wide range of applications:
1. This small liquid pouch packing machine can be used for packaging pure liquid materials with good flowability. Apart from being used as a water liquid pouch packing machine, it can also be used as liquid pouch packing machine for juices, beverages, milk, soy sauce, vinegar, cooking wine, red wine, syrup, and more. In such cases, the hopper of liquid plastic pouch packing machine can be removed, and the self-suction pipe can be installed at the rotary valve to realize simultaneous material suction and filling, eliminating the need for workers to frequently pour materials into the hopper.
2. This pouch packing machine for liquid can be used for packaging beverages with particles and semi-fluid materials with higher viscosity. In addition to being used in the food and pharmaceutical industries to package honey, pulpy orange juice, peanut butter, sesame paste, tomato sauce, jam, ointments, and more, it is also widely used in the chemical and daily necessities industries, can be used as a liquid detergent pouch packing machine, as well as for packaging of shampoos, shower gels, and other skincare products.
3. This liquid sachet pouch packing machine can package sauces such as bean paste, chili sauce, and hot pot seasonings etc.

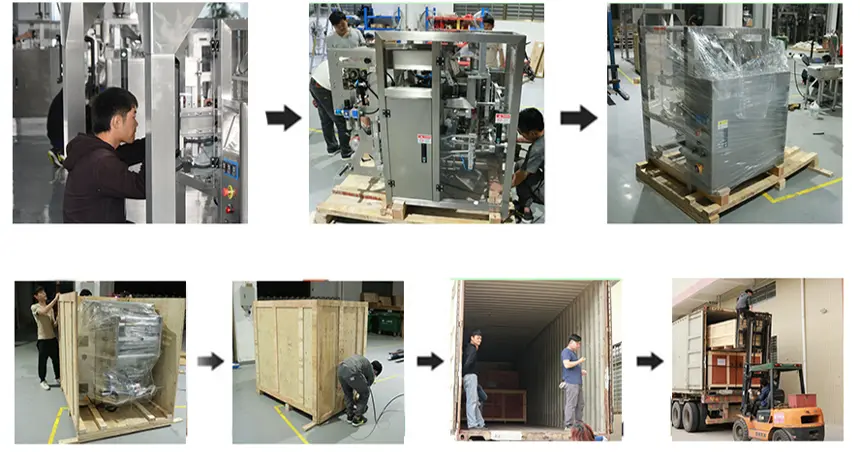

◆ Packing and shipping
We are a well-regarded liquid pouch packing machine manufacturer. Our liquid packaging pouch packing machines are widely sold to countries such as Pakistan, India, Sri Lanka, and others. To ensure that our customers receive the liquid pouch filling packing machine in perfect condition, we use wooden packaging to prevent any damage during transportation of the liquid pouch filling packing machine.
◆ Liquid pouch packing machine manufacturer

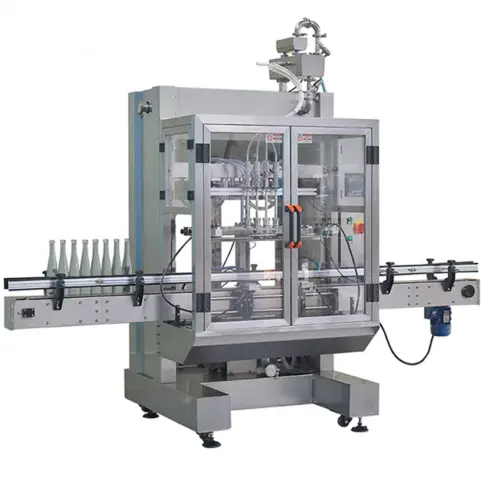

We are one of liquid pouch packing machine manufacturers from China. In addition to the liquid sachet pouch packing machine mentioned in this article, we also offer liquid premade pouch packing machine that uses pre-produced packaging bags for liquid packaging. Furthermore, we have liquid packaging machines that can fill liquid materials into bottles and cans. Our liquid pouch filling packing machine is sold to countries and regions in Southeast Asia, Latin America, and other places. We typically sell to packaging machine manufacturers and liquid pouch packing machine suppliers in various countries. For example, we have liquid pouch packing machine for sale to local packaging machine suppliers in India (such as liquid pouch packing machine manufacturers in Delhi, pouch packing machine manufacturer in Surat), Pakistan, and more. Of course, we also sell to small businesses and individual users with packaging needs. Perhaps you can find our pouch packing machine for liquid near you, such as liquid pouch packing machine in Hyderabad, liquid pouch packing machine in Ahmedabad, and so on. Our packing machines have gained popularity and positive reviews from consumers. In the future, we will further optimize the development model of "stable quality, affordable price and superior service", to provide the packaging machinery market with more comprehensive and better products and services.
According to our long-term sales experience, we have found that the liquid pouch packing machine price is an important consideration for most customers when making a purchase decision. Many customers, especially individual users, want to know the price of liquid pouch packing machine in their local areas. Actually, you only need to add the shipping cost from liquid pouch packing machine suppliers to your location on top of price of liquid pouch packing machine. Let's taking this multi-functional liquid plastic pouch packing machine mentioned in this article as an example, its reference price is 7000 USD. So, if you want to know the liquid pouch packing machine price in Pakistan, you just need to add the shipping cost from the liquid pouch packing machine manufacturer's location to Pakistan on top of 7000 USD. Similarly, if you want to know the automatic liquid pouch packing machine price in India, you only need to add the shipping cost from the liquid pouch packing machine manufacturers to India on top of the automatic liquid pouch packing machine price of 7000 USD.
If you would like to learn more about liquid pouch packing machines, such as liquid pouch packing machine video, liquid pouch packing machine price, etc., please feel free to contact us.
