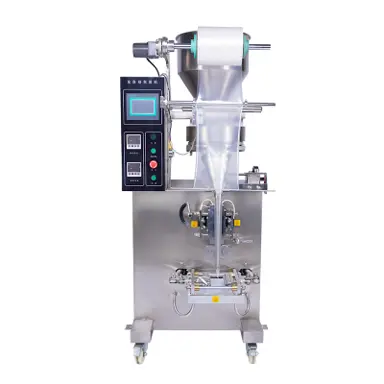

Fully Automatic Pouch Packing Machine
◆Automatic pouch packing machine description
The fully automatic pouch packing machine can automatically complete weighing,measuring,bag making,filling,sealing,printing batch number,cutting and counting.It adopts PLC control,and the whole process is automatically controlled,the work is stable and the maintenance is easy.Pouch packing machine automatic replaces manual packaging and realizes packaging automation for large enterprises and small and medium-sized enterprises.
This small automatic pouch packing machine is mainly used for packaging the following products or similar products: granular medicine,sugar,coffee,fruit,tea,monosodium glutamate,salt,seeds etcWhen equipped with different filling mechanisms,it can realize the packaging of powder,granule,liquid,sauce and other materials
◆Product parameters
Fully automatic pouch packing machine
| Model no. | YS150G | YS200G |
|---|---|---|
| Automatic Grade: | Automatic | Automatic |
| Production speed | 35-60pcs/min | 30-50pcs/min |
| Filling range(g) | 5-20/20-50/50-200g | 100-500/500-1000g |
| Filling accuracy | ±2% | ±2% |
| Bag size(mm) | L40-180 W10-140mm | L50-270 W30-180mm |
| Power(kw) | 1.8KW | 2KW |
| Dimensions(mm) | 700*900*1650mm | 1130*930*2000mm |
| Weight(kgs) | 280KG•Automatic and efficient filling, fast unloading! | 340KG |
◆ Product features
● Automatic and efficient filling, fast unloading!
● Automatic packaging, orbital air pressure system, tighter sealing!
● Automatic cutting, various packaging, the length of the bag can be set!
● Suitable for a wide range of packaging materials,Filter paper, non-woven fabric, transparent packaging film, aluminum foil bag packaging, composite film, and colored packaging film can all be used to this fully automatic pouch packing machine.

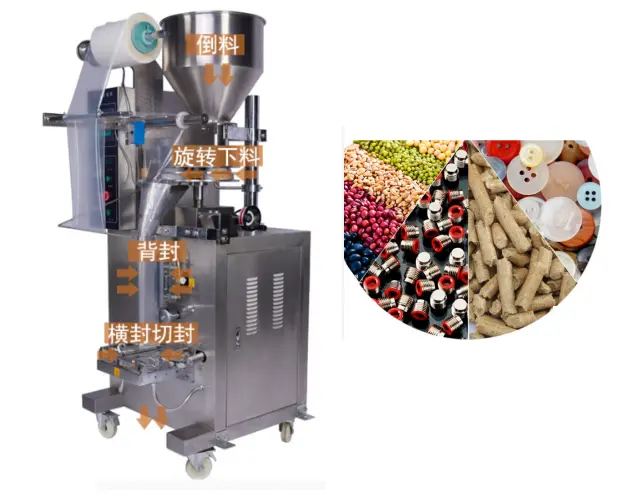

● Can pack a variety of products.This national pouch packing machine can be applied to the packaging of nuts, whole grains, parts, pharmaceutical granules and other industries.

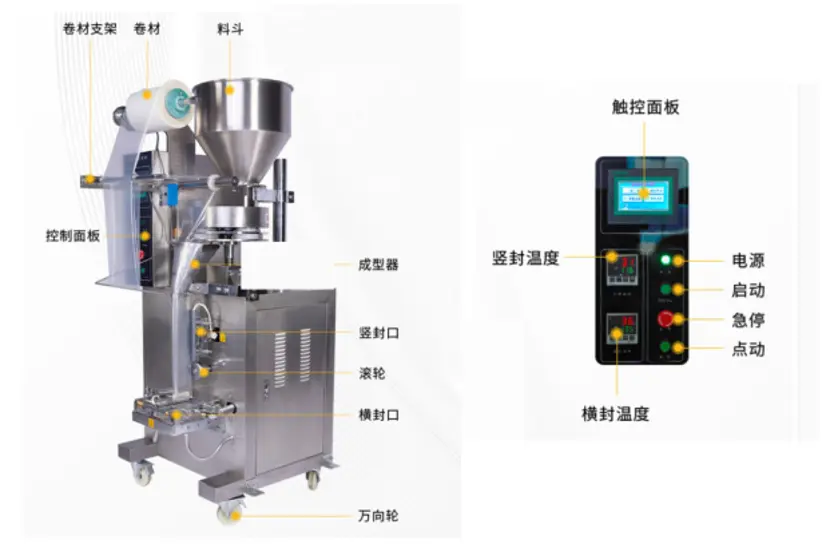

◆ Product structure
◆ Packaging operation steps

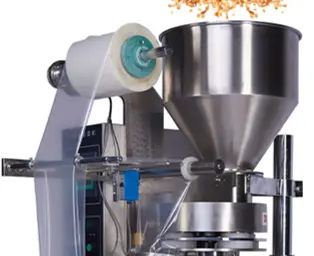

Step 1: Install the packaging material film on the stand and place it in the former.
Step 2: Pour the material into the filling container and start quantitative packaging.

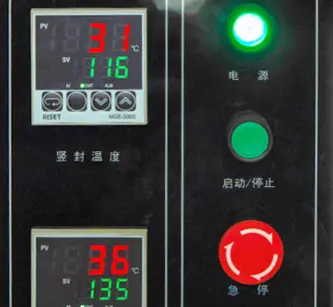

Step 3: Set parameters
Operate the control panel, set the speed to be packed, the weight of each pack, the length of the aluminum foil and the heating temperature, and then start packing.

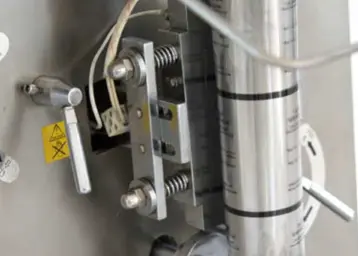

Step 4: Automatic filling and back seal
Stainless steel push seal on both sides, the seal is firm, neat and beautiful.

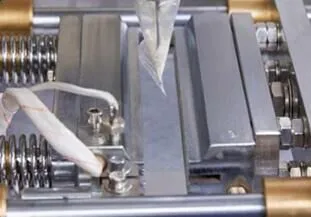

Step 5: Horizontal seal
Double-sided push design, the machine works stably, and the sealing and cutting at the same time.
Step 6: Automatic cutting
Quick discharge, simple operation, high efficiency, beautiful sealing.

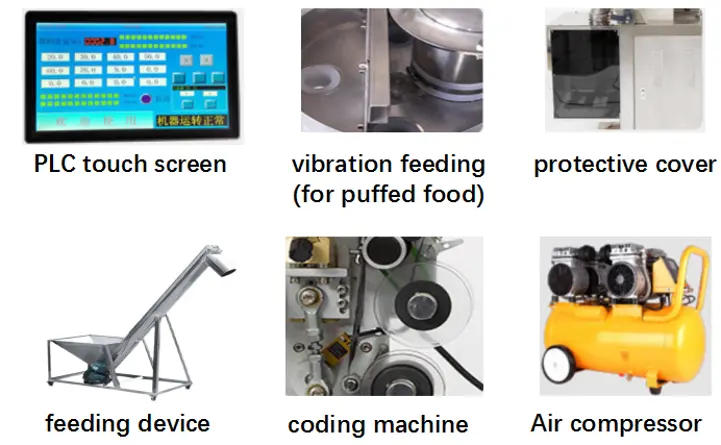

◆ Optional configuration

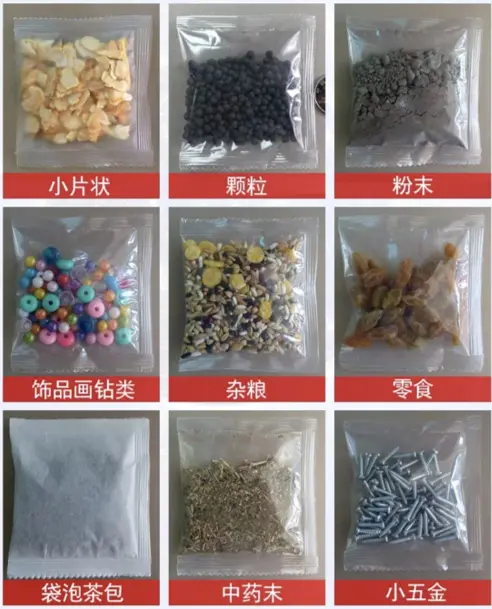

◆Fully automatic pouch packing machine application
When this automatic pouch packing machine is equipped with different filling mechanisms, it can realize the packaging of powder, granule, liquid, sauce and other materials
1.automatic tea pouch packing machine
Match with a vibrating feeding device,it can be used as a tea pouch packing machine,green tea pouch packing machine,and a pneumatic tea pouch packing machine is optional,with stronger seal.Also can be used as tablet pouch packing machine and camphor tablet pouch packing machine,with smooth feeding and beautiful packaging.
2.powder pouch automatic packing machine
With a vibration feeding device,it can be used as a pouch packing machine for powder, such as a automatic spice pouch packing machine.vibration feeding,non-stick.

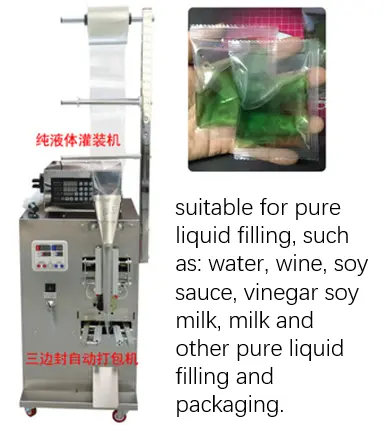

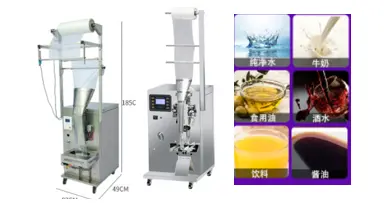

3.automatic liquid pouch packing machine
Equipped with a pure liquid filling machine, it can extract liquid and use it as a pouch packing machine for liquid(automatic milk pouch packing machine, automatic water pouch packing machine etc.) with tight sealing and beautiful packaging.
4. ketchup pouch packing machine

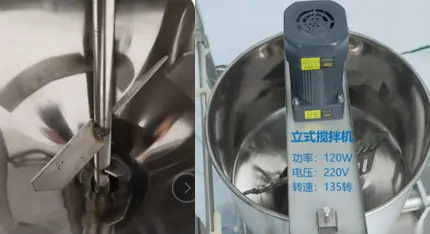

Combined with a mixer, it can complete the packaging of paste and sauce, such as tomato ketchup pouch packing machine, with uniform feeding and beautiful packaging.
◆ Automatic pouch packing machine price
There are many pouch packing machine on the market, and the automatic pouch packing machine price are also varied, ranging from a few thousand to tens of thousands USD. Different packaging purposes, different functions, and different machine configurations will affect the pouch packing machine price.
| Model | Reference Picture | Reference Price |
|---|---|---|

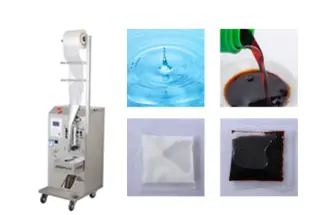

| automatic water pouch packing machine price |  |
800-1300 USD |
| automatic liquid pouch packing machine price |  |
1400-2500 USD |

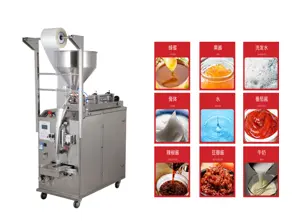

| ketchup pouch packing machine |  |
1700-2800 USD |
◆ Automatic pouch packing machine manufacturers
Due to the characteristics of variety and price uncertainty of packaging machines, choosing a suitable and reliable automatic pouch packing machine manufacturers can help you get the right machine and right price that can really meet your needs.
We are a professional automatic pouch packing machine manufacturers, provide high-quality products with reasonable prices and perfect services. We provide different types of pouch packing machine like automatic water pouch packing machine, automatic masala pouch packing machine etc. You can view our pouch packing machine video and you are welcome to contact us on WHATSAPP for more information such as list of automatic pouch packing machine, pouch packing machine parts and pouch packing machine price list.
